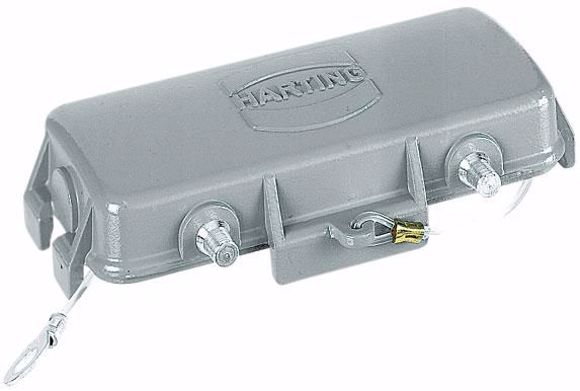

Cover 16E/72DD - Grey

Artikelnummer 09 30 016 5425 Beschrijving Han D/E HOUSING COVER SPECIAL Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Protection cover for bulkhead and surface mounted housings Description of hood/housing With fixing cord Metal Type High construction Low construction Locking type Double locking lever Version Size 16 B Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Material properties Net weight 63.2 g RoHS compliant Specifications and approvals GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: Out of stock (On request)
Products specifications
Material Steel
Color Grey
Contacts 16P
Products specifications
Material Steel
Color Grey
Contacts 16P
Customers who bought this item also bought

PCE-CE108ZW

Female chassis SCHUKO 16A/230V/2+A BLACK

HAR-09307160301

Panel Open 16E/72DD - Black

Artikelnummer 09 30 716 0301 Beschrijving Han B Base Panel 2 Levers black Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Bulkhead mounted housings Description of hood/housing Black Type Low construction Locking type Double locking lever Han-Easy Lock® Yes Version Size 16 B Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Flammability acc. to UL 94 (locking levers) V-0 Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 9005 (jet black) Material (seal) NBR Material (locking) Stainless steel Polycarbonate Colour (locking) RAL 9005 (jet black) Net weight 121.7 g RoHS compliant Specifications and approvals GL Yes

Declaration of Conformity

HAR-09330162701

Insert Female 16E with screwcontacts

Han 16E-bu-s Part number 09 33 016 2701 Specification Han 16E-bu-s HARTING eCatalogue https://b2b.harting.com/09330162701 Identification Category Inserts Series Han E® Version Termination method Screw termination Gender Female Size 16 B With wire protection Yes Number of contacts 16 PE contact Yes Technical characteristics Conductor cross-section 0.75 ... 2.5 mm² Conductor cross-section AWG 18 ... AWG 14 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Insulation resistance >1010 O Contact resistance =1 mO Limiting temperature -40 ... +125 °C Stripping length 7.5 mm Product data sheet 09 33 016 2701 Han 16E-bu-s Page 2 / 2 | Creation date 2019-10-01 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality, conformity with applicable laws and directives, as well as for the electrical safety in the particular application. HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany Phone +49 5772 47-97100 | electric@HARTING.com | www.HARTING.com Technical characteristics Tightening torque 0.5 Nm Mating cycles =500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Material (contacts) Copper alloy Surface (contacts) Silver plated Material flammability class acc. to UL 94 V-0 RoHS compliant with exemption RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight ELV status compliant with exemption China RoHS 50 REACH Annex XVII substances No REACH ANNEX XIV substances No REACH SVHC substances Yes REACH SVHC substances Lead Specifications and approvals Specifications EN 60664-1 IEC 61984 Approvals DNV GL UL / CSA UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 CSA-C22.2 No. 182.3 PVVA8.E318390 Commercial data Packaging size 1 Net weight 89 g Country of origin Germany European customs tariff number 85366990 eCl@ss 27440205 Contact insert for industrial connectors
