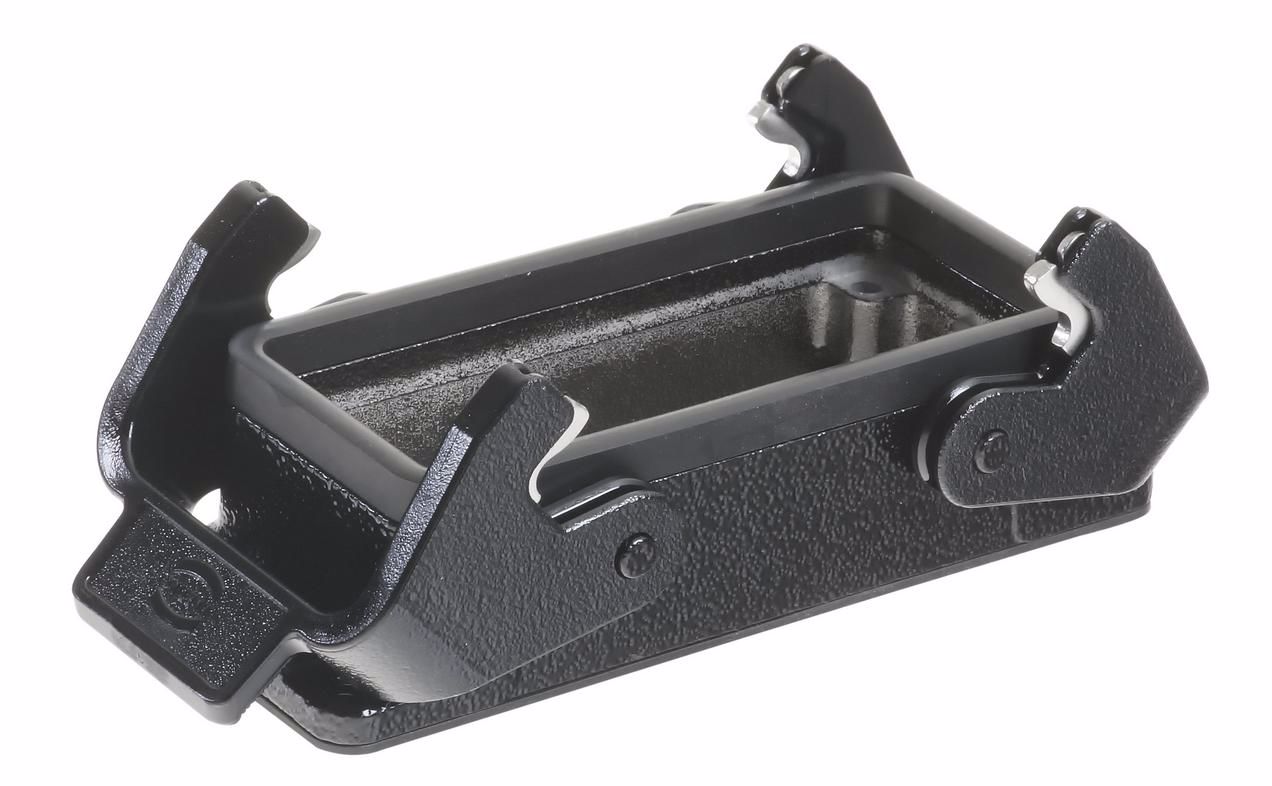

HAR-09307160301

Panel Open 16E/72DD - Black

Artikelnummer 09 30 716 0301 Beschrijving Han B Base Panel 2 Levers black Type sheet PDFPDF Identification Category Hoods/Housings Series of hoods/housings Han® B Type of hood/housing Bulkhead mounted housings Description of hood/housing Black Type Low construction Locking type Double locking lever Han-Easy Lock® Yes Version Size 16 B Field of application Standard hoods/housings for industrial connectors Technical characteristics Limiting temperature -40 ... +125 °C Degree of protection acc. to IEC 60529 IP65 Degree of protection acc. to UL 50 12 4 4X Flammability acc. to UL 94 (locking levers) V-0 Material properties Material (hood/housing) Aluminium die-cast Surface (hood/housing) Powder-coated Colour (hood/housing) RAL 9005 (jet black) Material (seal) NBR Material (locking) Stainless steel Polycarbonate Colour (locking) RAL 9005 (jet black) Net weight 121.7 g RoHS compliant Specifications and approvals GL Yes

Declaration of Conformity

Manufacturer: Harting
Availability: In stock
Products specifications
Material Steel
Color Black
Contacts 16P
Products specifications
Material Steel
Color Black
Contacts 16P
