HAR-09330006202

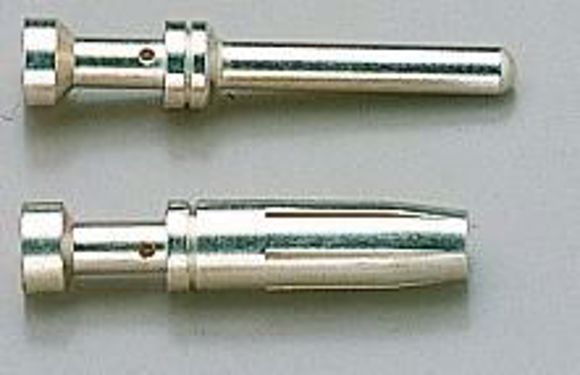

Contact Silver Male 2,5mm² HanE

Artikelnummer 09 33 000 6102 Beschrijving Han E MALE CRIMP CONTACT 2.5 Type sheet PDFPDF Identification Category Contacts Series Han E® Type of contact Crimp contact Version Gender Male Contact identification 3 grooves Technical characteristics Conductor cross-section 2.5 mm² Conductor cross-section AWG 14 Operating current ? 16 A Contact resistance ? 1 m? Stripping length 7.5 mm Material properties Material (contacts) Copper alloy Surface (contacts) Silver plated Net weight 1.31 g RoHS compliant with exemption Specifications and approvals Specifications IEC 61984 EN 60664-1

Declaration of Conformity

Insert Female 16E crimp (without contacts)

Artikelnummer 09 33 016 2702 Beschrijving Han 16 E-F-C Type sheet PDFPDF Identification Category Inserts Series Han E® Termination method Crimp termination Version Gender Female Size 16 B Number of contacts 16 PE contact Yes Details Please order crimp contacts separately. Technical characteristics Conductor cross-section 0.14 ... 4 mm² Electrical data acc. to IEC 61984 16 A 500 V 6 kV 3 Rated current 16 A Rated voltage 500 V Rated impulse voltage 6 kV Pollution degree 3 Rated voltage acc. to UL 600 V Rated voltage acc. to CSA 600 V Limiting temperature -40 ... +125 °C Mating cycles ? 500 Material properties Material (insert) Polycarbonate Colour (insert) RAL 7032 (pebble grey) Net weight 62.8 g RoHS compliant Specifications and approvals Specifications IEC 61984 EN 60664-1 Approvals CSA-C22.2 No. 182.3 PVVA8.E318390 UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 GL Yes

Declaration of Conformity
