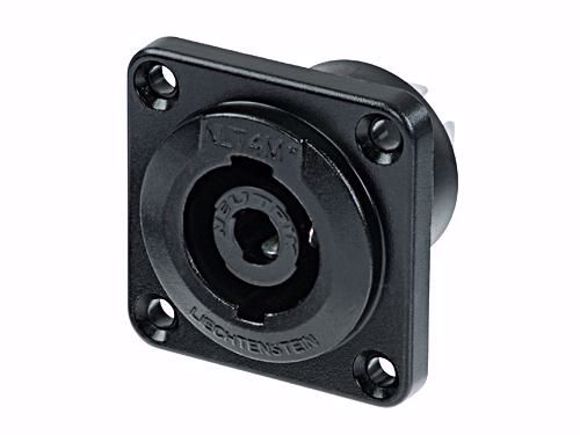

NEU-NLT4MPXX

Panel Speakon, 4P, Male, G-size, Heavy duty, Metal

4 pole male chassis connector, black-chrome metal housing, solder or ¼" flat tabs The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing. Features & Benefits •Extremely robust metal housing designed for harsh and demanding environment •Ideal product for touring applications and harsh environments •Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle •Uses precise “Quick Lock” system •Mates with all currently available speakON products •Weatherproof built-in gasket meets IP 54 protection class in mated condition •4 pole version has UL Recognized components, CSA listed •4 type range - also male cable connector and female receptacle on 4-pole version
Manufacturer: Neutrik
Availability: In stock
Products specifications
Contacts 4P
Products specifications
Contacts 4P
