The TechLogix ECO series delivers an ecologically sound product at an economical price.

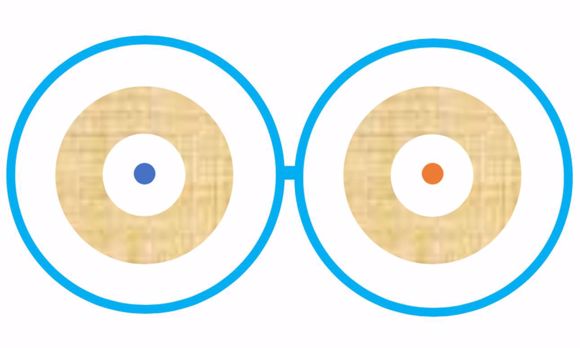

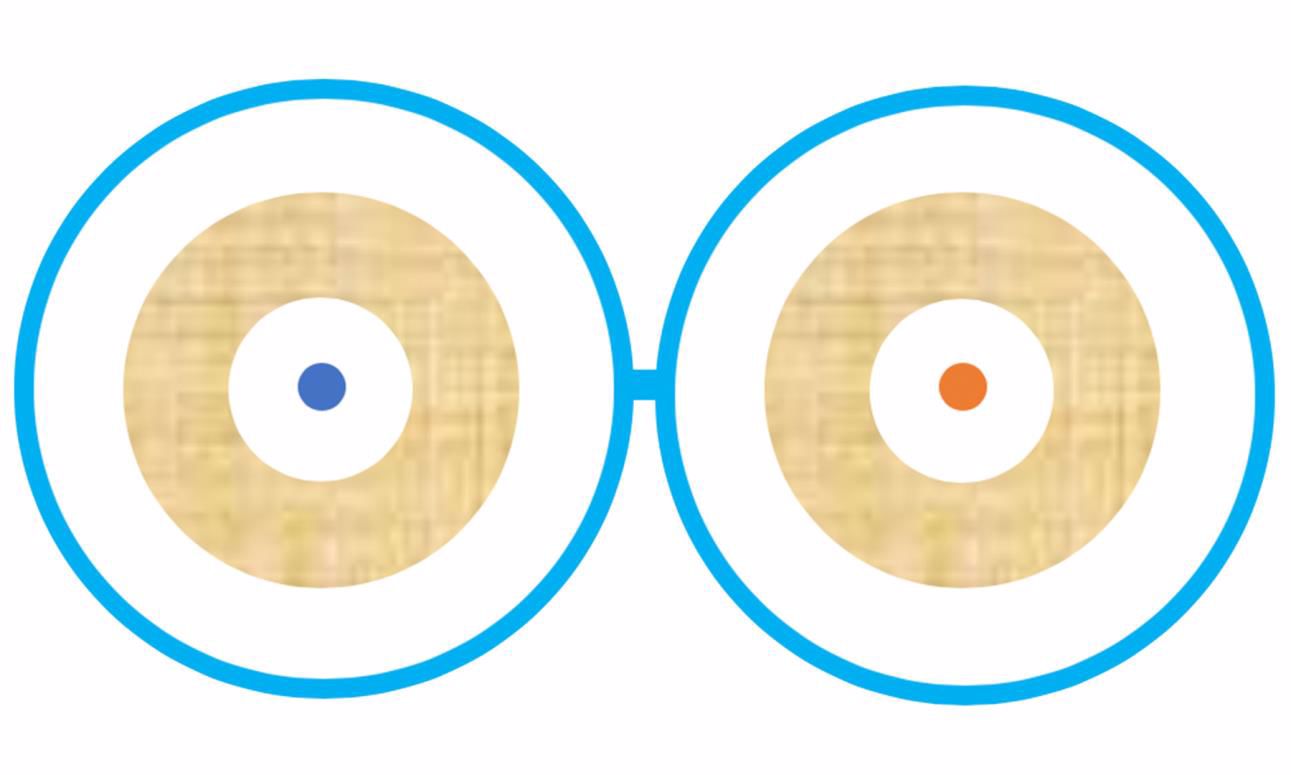

ECOFiber™ is made using bend-insensitive Corning ClearCurve® OM3 fiber and costs up to 30% less than competing brands of optical cable.
It's also friendlier to the environment than copper cabling. Less energy goes into producing fiber cabling and fiber-based systems have a lower energy consumption and smaller installation footprint. Plus, all ECOFiber™ products ship in minimally processed recyclable packaging.
ECOFiber™ is designed to withstand tight bends (10mm minimum bend radius), challenging cable routes, rough handling and terminates in a few minutes.
Standard SKUs are available in reels of 500 and 1,000 feet. Custom constructions and cuts are available upon request.
TechLogix's ECO Series of fiber optic tools are the perfect compliment to your fiber optic AV or network installation. Occasionally, a component in a kit will need to get replaced or a spare would be nice to have around.
This plunger-style alcohol dispenser bottle is a direct replacement for the bottle that is included in the ECO-TERMK-01 Fiber Optic Termination Kit. Simply flip open the cap, press the top of the plunger with a wipe over the hole, and a small amount of alcohol will start to be released to moisten the wipe. Close the flip-top cap when you're done.
There is no need to worry spilling alcohol all over the work environment when moistening a wipe. There is no need to wonder if the cap was screwed on tight before closing up the Fiber Optic Termination Kit.
These high-quality, lint-free disposable wipes are a necessity when it comes to terminating fiber optic cables. After a few installations of multi-strand fiber optic cable, the box of wipes that came in the ECO-TERMK-01 Fiber Optic Termination Kit will be running low. Now, you can easily get a box of the same wipes that came in the Kit, so you know they'll work well.
includes cleaver, sheers, 3 hole strippers, VFL, batteries, ruler, marker, alcohol container, wipes, carry case
The TechLogix Networx ECO-TERMK-01 Economy Fiber Termination Kit provides the required tools to terminate fiber optic cable.
The included high precision wheel cleaver produces quality cleaves without the need for microscope verification. The blade provides up to 36,000 cleaves via an easy blade position selection adjustment. A verification fault locator allows for visible laser light to be used during the termination process.
The kit includes carrying bag and strap, precision fiber strippers, VFL, and other hand tools all located in a convenient case that protects the included tools while allowing ease of access.
includes single mode generator, multimode generator, optical meter, batteries, VFL, adapters, reference cables, cleaning cube
The TechLogix Networx ECO-TESTK-01 Basic Fiber Test Kit provides the essential tools for optical link testing. The Optical Power Meter and Light Source units test both multimode and single mode fibers at four wavelengths with a range of 70dB to measure optical power loss on installed fiber.
The kit includes adapters to test SC, LC, and FC terminated cables. Both test units along with included cables and adapters are contained in a rugged case that keeps the items within neat, organized, and protected. The kit allows testing of installed cables, connectors, splices, and links. The Optical Light Source and Power Meter (LSPM) measure loss for comparison to estimated loss calculated for the link or “loss budget.” The LSPM test set allows for measurements with a known good reference cable calibrated to “0 dB.” Utilization of this kit provides for verification of cable links to industry standards.
